Agoura modeling: breaking new ground on emulation accuracy

The Helix Stadium series ushers in a new era of Line 6 modeling, complete with a ground-up redesign of the modeling process in the series’ revolutionary Agoura technology. While Line 6 has long utilized component-level modeling in its emulations, this innovative methodology replicates how individual components interact with the rest of the circuitry. Dubbed “Sub-component Behavioral Modeling,” Agoura re-creates ultra-minute nuances of real-world tube amp design — from the complex way that an amp’s power supply interacts with the signal to the capacitance between wire runs within the chassis.

Naturally, this technology leads to a stunning increase in emulation accuracy across the board. Moreover, while the Line 6 Helix Stadium’s amp models sport superior sound quality, Agoura modeling’s comprehensive component-level architecture also ensures that every model feels like its real-world equivalent — a far more challenging quality to capture. From the dynamic touch-sensitivity of a tube amp pushed to the brink to a quick clean-up of a dirty signal with a volume roll-off, Line 6’s Agoura modeling provides you with the precise sound and response of the most legendary gear in music history.

Automate your sets with Showcase

The Helix Stadium XL’s Showcase automation and playback engine lets you do everything from jamming along with your favorite tracks to running fully automated preset and parameter changes throughout your entire performance. Need help nailing down the perfect tone for your cover band? By loading a track into your Helix Stadium XL, Showcase can split and mix the song’s individual instrument stems. Turn down the guitar track, and you’ll be able to play with the track itself, not on top of it. Tone-sculpting enthusiasts are also quick to point out that this function is perfect for crafting stage- and studio-ready presets — the saturation-drenched lead sound you’ve so lovingly crafted might sound incredible solo, yet what sounds perfect in isolation often needs tweaking to excel in a full-band context!

Furthermore, Showcase’s power extends far beyond the boundaries of jamming and preset shaping. By placing flags at key moments within a track, Showcase can automatically trigger amp swaps, external pedal switching, MIDI to DMX lighting, drum machine and keyboard patches, and even send a message to your laptop to activate a video onstage. And for those playing in a more fluid musical setting, Showcase flags can also be activated via a footswitch stomp, giving you the power to activate your setting shifts after an unscheduled extended solo or an improvisational detour.

Cloud-based cloning engine

So far, Line 6 has only hinted at the Helix Stadium XL’s capture capabilities, yet they were kind enough to give us a few choice details and a name: Proxy. This technology will give you the ability to clone your favorite physical amps, effects, and cabinets to add to your digital arsenal. Furthermore, as Proxy is a cloud-based technology, you’ll be free to make music with your Stadium XL while the cloud processes and creates your clone. To push the envelope past current cloning capabilities, Line 6 has also subtly suggested that Proxy will eventually be able to encompass gear beyond the standard amp, dirt pedal, and cabinet capabilities of most current cloners — we can’t wait to see what Proxy has in store!

Expressive XL upgrades

When it comes to processing power, the Helix Stadium XL and the Helix Stadium are essentially identical. Both models boast enhanced DSP power, a dedicated GPU, a machine-learning accelerator, and FPGAs, all topped off with fresh 64-bit floating-point architecture. Even their I/O sections are essentially the same, with both models boasting internal power supplies, S/PDIF digital I/O, USB-C, and a microSD port with an included 32GB card. That said, the Helix Stadium XL slightly edges out the Helix Stadium with a second instrument input and four total FX loops.

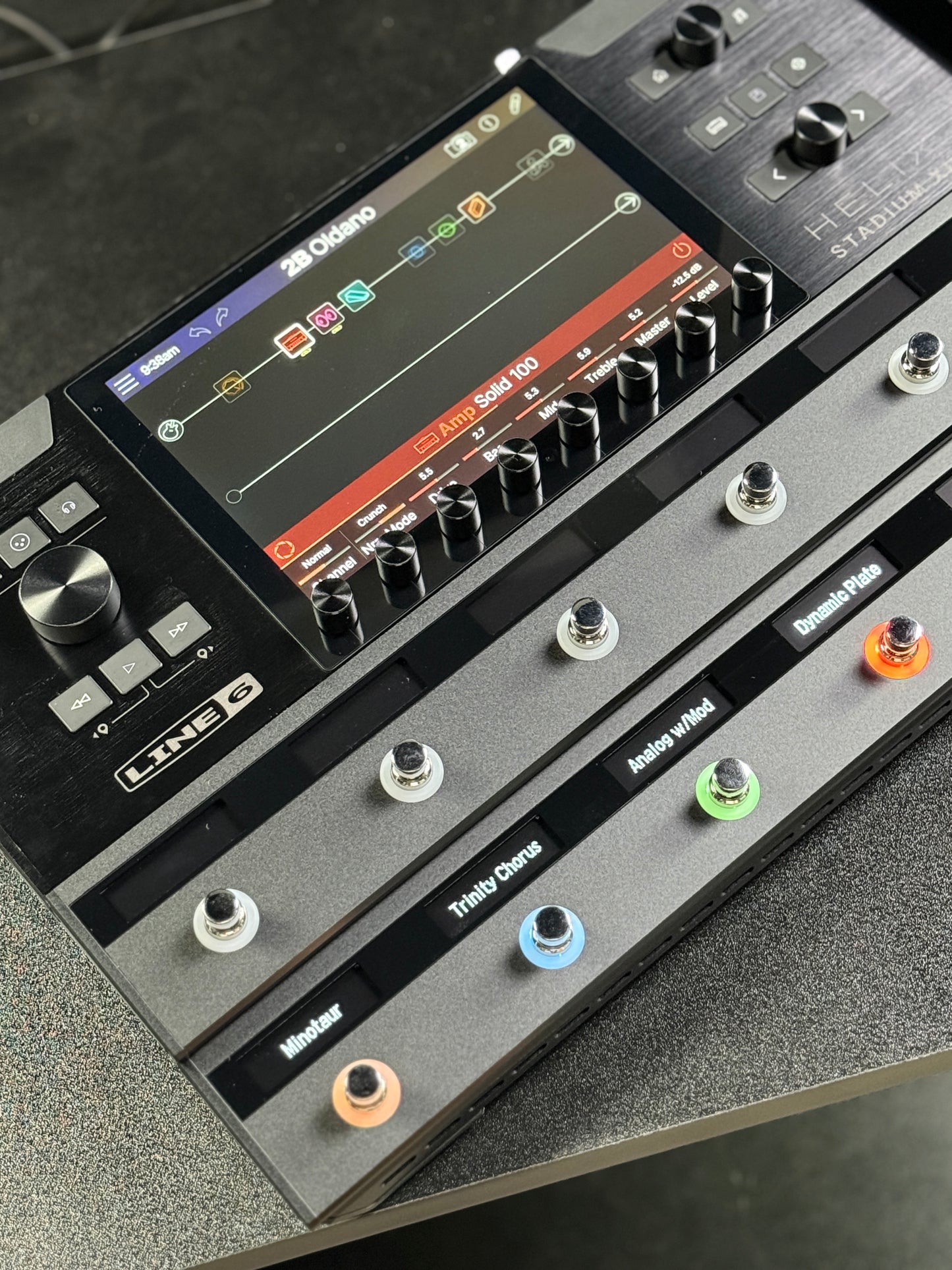

So, what makes the Helix Stadium XL the “XL” version? Two upgrades: a built-in expression pedal with a toe footswitch and high-visibility scribble strips. These light-up strips can be fully adjusted (or even turned off) for brightness, providing you with an instant visual confirmation of what each switch is currently set to accomplish. And while both models boast plenty of jacks to connect an external footswitch, the Helix Stadium XL’s assignable expression treadle and toe switch grant you superior expressive capabilities right out of the box.

Complete cab customization

Finding the sweet spot of your amp’s cabinet emulation is a breeze thanks to Focus View's 3D graphic interface. This tool allows you to drag and drop a microphone model around your cabinet within a virtual 3D representation — it’s just like repositioning the mic around a cab in the studio, only it’s accomplished with the swipe of a finger. What’s more, the Helix Stadium XL’s streamlined file system can save thousands of your favorite presets and arrange them within easy-to-navigate nested folders.

Line 6 Helix Stadium XL Features:

• The next generation of Line 6's Helix processors with state-of-the-art amp and FX emulations
• Cutting-edge Agoura modeling re-creates every component within a circuit and how it interacts with other components, resulting in superior sonic accuracy
• 16 Agoura amplifier models and 6 Agoura bass amps right out of the box, with plans for many more!
• Complete preset compatibility with Helix/HX products
• Hype control allows you to capture both ultra-accurate amplifier emulations and slightly sweetened versions to better match the sounds you hear on your favorite records
• High-resolution 8-in. touchscreen ensures intuitive navigation and parameter editing
• 12 footswitches with high-contrast OLED scribble strips make it a breeze to swap between presets, effects, and more
• Assignable expression pedal with toe switch supplies expressive in-the-moment control of your sounds and parameters
• Showcase live automaton allows you to split, mix, and jam-along with tracks; fully automate track transitions with flags; and even automate lights, video, keyboard/drum patches, and much more
• Matrix Cue Mixer gives you the power to create independent mixes for different outputs
• Focus View supplies in-depth, context-based control of your current model
• Optimized form factor clocks in 25% smaller and 21% lighter than the Helix floorboard
• Enhanced sound all around, including high-dynamic-range circuits on every analog input, superior mic preamps with 128dB dynamic range, bolstered headroom, and variable-impedance instrument inputs with >126dB of dynamic range
• Includes Wi-Fi and Bluetooth control
• Fine-tune every parameter with Line 6's free Helix Stadium editing software
• Cloud-based Proxy cloning engine coming soon!
• File system allows you to load up thousands of IRs and organize them within convenient nested folders
• Audio interface capabilities allow you to record your favorite presets directly to your DAW via USB

Tech Specs

• Pedal Type:Line 6 Stadium Multi-FX
• Analog/Digital:Digital
• Amp Modeling:Yes, Agoura Modeling Methodology
• Impulse Response:Yes
• Inputs:2 x 1/4" (instrument), 1 x XLR (mic), 2 x 1/4" (control a/b, c/d)
• Outputs:2 x XLR, 2 x 1/4"
• Digital Inputs:1 x Coax (S/PDIF)
• Digital Outputs:1 x Coax (S/PDIF)
• Headphones:1 x 1/4"
• MIDI I/O:In/Out/Thru, 2 x 5-pin XLR (in, out/thru)
• Other I/O:1 x RJ-45 (Line 6 Nexus), 4 x 1/4" (fx send), 4 x 1/4" (fx return)
• USB:1 x Type A, 1 x USB-C
• Bluetooth :Yes
• Software:Helix Stadium Editing Software
• Power Source:Stanadard IEC AC Cable
